VFFS Multihead Weigher Packing Machine Bucket Elevator 2200W 60hz

Product Categories
Anhui UUPAC Intelligent Equipment Co.,Ltd.
Contact Now

VFFS Multihead Weigher Packing Machine Bucket Elevator 2200W 60hz

  • 1
  • 2

Brand Name : UUPAC

Model Number : Z-Type Bucket Elevator+10/12/14 Head Weigher+Working Platform

Certification : CE/ISO

Place of Origin : HEFEI,ANHUI,CHINA

MOQ : 1 Set

Price : $10000-50000/set

Payment Terms : T/T

Supply Ability : 10 set/month

Delivery Time : 15-20 work days

Packaging Details : 4 Cartons

Material : SUS304

Packaging : Wood Carton

Contact Now

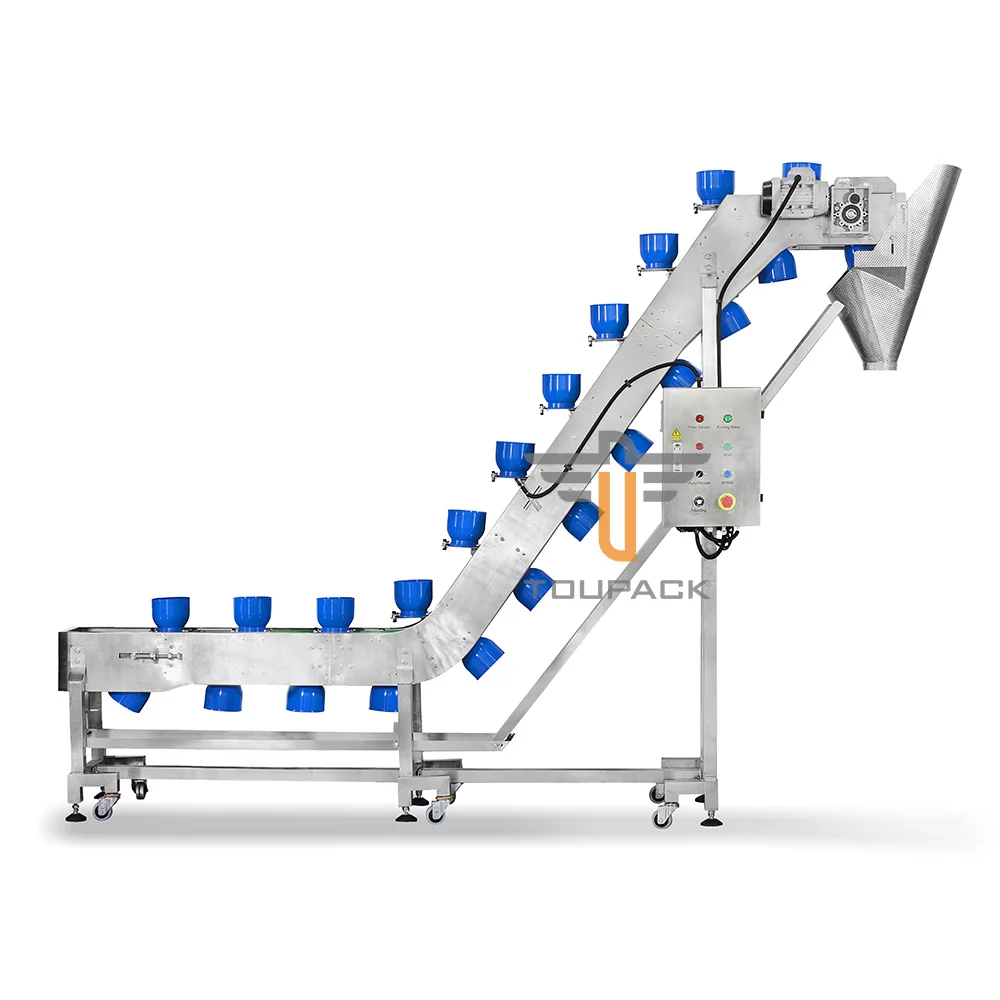

Z-Type Bucket Conveyor

Product Details

Application:
The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing &
packaging machines and color selecting machines on automatic production line. The products elevated vary from pet food, puffed
food, fodder, candies, dried fruit, health food, grains, chemicals, hardware, etc.

Main Function & Features:
1. The bucket is made of food grade PP material with good looking, free of deformation as well as of low and high temperature
resistance.
2. Compact structure design for space saving the Lifting height and machine size can be customized.
3. Fully enclosed structure leaves the machine no chance for leakage or pollution. Low rate of material damage. Ideal for
non-sticky product conveying.
4. Adjustable conveying speed and easy maintenance, disassembly and cleaning.
Contents
Specifications
Body Material
carbon steel / SUS304
Hopper Volume
1.0L / 1.8L / 3.6L
Hopper Surface
dimple / plain
Power Supply
single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW
Conveying Capacity
2.5m³/h / 4m³/h / 8m³/h
Machine Dimension(mm)
per customer’s requirement
Vibrating Feeder
detached / independent vibrating feeder
Feeder Volume
70L / 100L / 150L / 200L
Discharge Funnel
single / double / multiple
VFFS Multihead Weigher Packing Machine Bucket Elevator 2200W 60hz

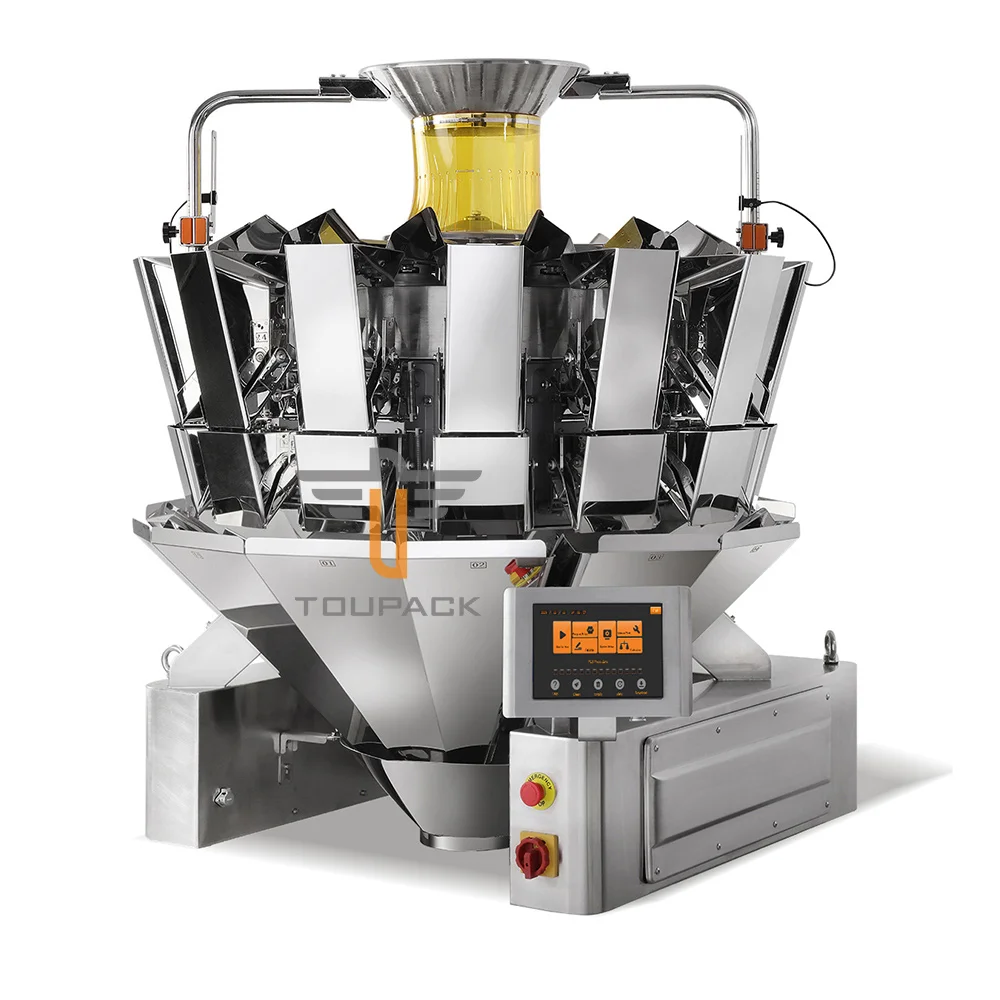

10/14 Head Weigher
Application:
Applicable for weighing of all types of small-sized / dosed granular products, such as prepared herbal medicine, tea, seeds, MSG,chicken essence seasoning, coffee beans, chocolate beans, etc.

Main Function & Features:
1. Professional digital weighing module for high precision and good stability.
2. Control system: MCU or PLC (optional).
3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application
software upgraded through USB.
4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
6. Weighing and counting function to meet diverse needs from customers.
7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running
status of the machine.
8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.
9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.
10. Modular design of control system for easy maintenance and cost-saving.
11. Specifically designed for small granular products with high precision and fast working speed.
Model
TY-A-M14-1; TY-A-P14-1
Max. Weighing (one hopper)
5-200g
Accuracy
x (0.5)
Min. Scale Interval
0.1g
Max. Speed
120 WPM
Hopper Volume
0.8L/0.5L
Control System
MCU / PLC
HMI
7’’ / 10’’ color touch screen
Power Supply
AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension
1,370(L)*1,060(W)*1,105(H)mm
Package weight
240kg
VFFS Multihead Weigher Packing Machine Bucket Elevator 2200W 60hz
Bowl-Type Elevator

Application:
Applicable for lift-conveying of solid, granular, small-sized products, and more often for secondary lifting solution due to field space limitation.

Main Function & Features:
1. Able to perform in continuous or intermittent conveyance and support other feeding equipment.
2. Bowl made of food grade PP material and able to quickly remove from machine for cleaning.
3. Able to achieve second feeding (need to adjust the timing) and the conveying speed is adjustable.
4. Even when the bowl is in inclined position, it can still be kept level and the product will not overflow.
5. Able to connect with rotary packaging machine to achieve solid & liquid mixed product packaging.
Contents
Specifications
Body Material
SUS304
Bowl Volume
0.8L / 1.4L / 3L
Power Supply
single / 3 phase 220V/380V 50HZ/60HZ, 0.75KW
Conveying Capacity
1.5m³/h / 2.5m³/h / 4m³/h
Machine Dimension
1,450mm or per customer’s requirement
VFFS Multihead Weigher Packing Machine Bucket Elevator 2200W 60hz
Rotary(Vacuum)Bag Packaging Machine
Main Function & Features:
1. Advanced design, reasonable structure, convenient operation and maintenance.
2. Precise positioning with servo film running system and synchronous belts to pull film, ensuring stability and reliability.
3. Automatic correcting function; time and film saving to improve the reliability and intelligence of the whole machine.
4. Multiple automatic alarm and protection functions to minimize the loss
5. Full packaging process of measuring, feeding, filling, bag forming and date printing, air in/out, counting and finished
product conveying in one automatic operation by the machine equipped with measurement device.
6. Bag type: pillow bag, gusset bag and hole punching bag.
Product Tags:

VFFS Multihead Weigher Packing Machine



2200W Multihead Weigher Packing Machine



60hz vertical packing sealing machine


Model
520 VFFS
Packing Speed
10-60 bpm
Bag Size
50-350(L)*50-250(W)mm
Bag Type
Quality VFFS Multihead Weigher Packing Machine Bucket Elevator 2200W 60hz for sale
